[Pre-Order] - PROXXON 24400 Precision lathe PD 400
[Pre-Order] - PROXXON 24400 Precision lathe PD 400
►The price of this product is for reference only. If you need to inquire about the price, please contact us.
Pre-Order Item, Please contact us for actual price and ordering.
►Note: You can choose to buy in store or pick up in store. All PROXXON power tools will be tested when purchased.
►Pictures and product information are for reference only.
►Please contact the staff for details.
► Available to purchase in-store or pick up at the store. All PROXXON electric tools purchased will be tested and demonstrated to customers at the store.
►Photos and product specifications are for reference only.
►Please contact us for details.

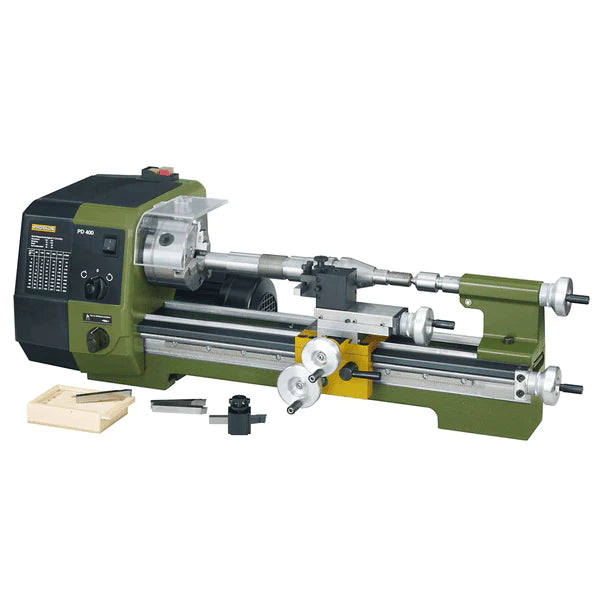

PD 400 lathe system
It is used for straight, transverse, taper, internal and external threads, slotting and other operations, with ideal processing results. Processable materials: mild steel, copper, aluminum and other non-ferrous metals and alloys.
Even under high-intensity operations, extremely small errors can be maintained. A wide variety of accessories are available for the PD 400 lathe system. The lathe is already equipped with a milled interface for mounting the PF 400 fixed drilling and milling head. Technical Parameters:
The center distance is 400mm and the center height is 85mm. The rotation diameter is 116mm. Sturdy, ribbed lathe table made of reinforced milled cast iron. Extra large spindle with 2 adjustable tapered bearings, MT3 taper, bore 20.5mm. The maximum operating error of the rotating shaft without a chuck is 5/1,000mm. The precision 3-jaw chuck has a clamping range of up to 100mm. The belt drive provides 6 spindle speeds: Level 1: 80/330/1,400rpm; Level 2: 160/660/2,800rpm.
Powerful and quiet single-phase motor, output power 550W. Practical hand wheel with zero scale reset function. Can slide sideways and vertically.
1 scale = 0.025mm. 1 circle=1.0mm.
Tailstock and capstan: 1 scale=0.05mm,
1 circle=1.5mm. The automatic feed speed is 0.07 or 0.14mm/turn. Built-in gearbox with replaceable gears available in 19 pitches: 2.0 - 0.25 - 0.3 - 0.4 - 0.45 - 0.5 - 0.6 - 0.7 - 0.75 - 0.8 - 0.9 - 1.0 - 1.25 - 1.50 - 1.75 - 2.0 - 2.5 - 3.0 mm. Standard threads with 10-48 teeth can also be machined.
Includes movable top center MK2 and 10mm MK2 gear chuck. The lateral stroke of the slider is 85mm,
Longitudinal stroke 52mm.
When turning a cone,
The turning tool holder can rotate 45° left and right. Tailstock with MK2 taper hole (short type), shaft travel 40mm and 24mm. With scale. Dimensions are approximately 900 x 400 x 300mm. Weight is approximately 45kg. Suitable dimensions are
10 x 10mm turning tool.
https://www.proxxon.com/en/micromot/24400.php
